K87s TKL Keyboard with Lifted Pads

So... a generous guy from Cebu gave me this keyboard for free due to lifted solder pads and traces. Thank you, kind Sir. You know who you are.

2017.05.18 VER1.0 FR-4 1.6MM EP-K87S-BYK870+BY8832



Motospeed tenkeyless

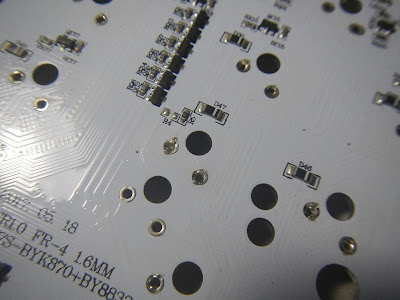

Some photos of the damages.





Dead keys

Re-locating traces

Repair attempt seems to be successful

More photos of the PCB for reference

Currently sourcing for switches that will used to anchor the new wire trace.
